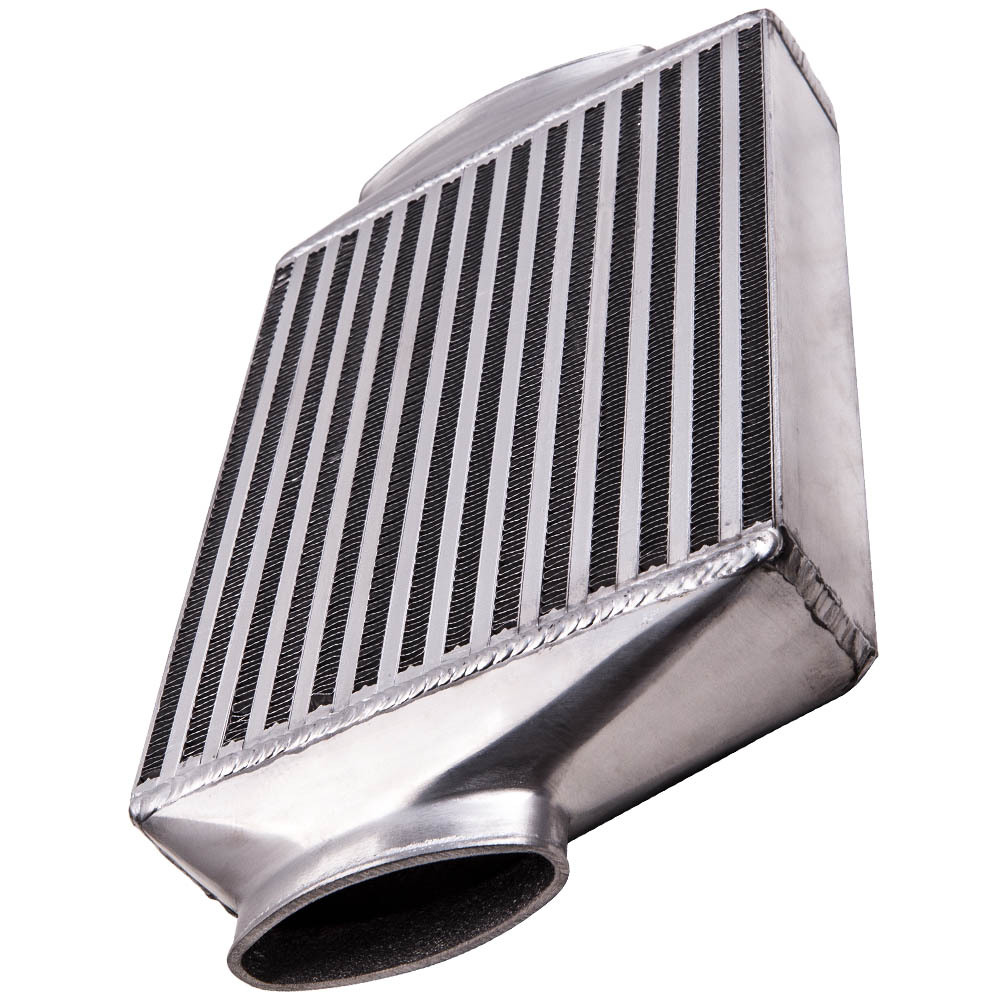

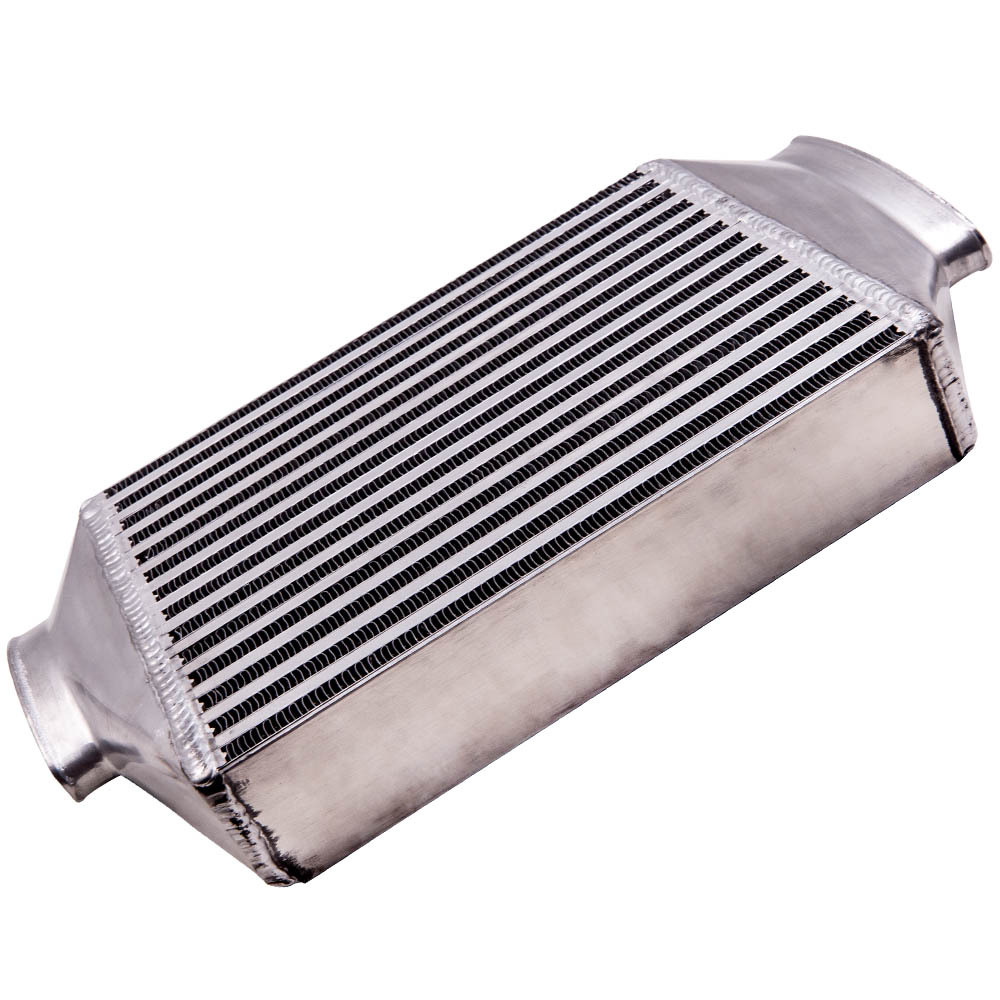

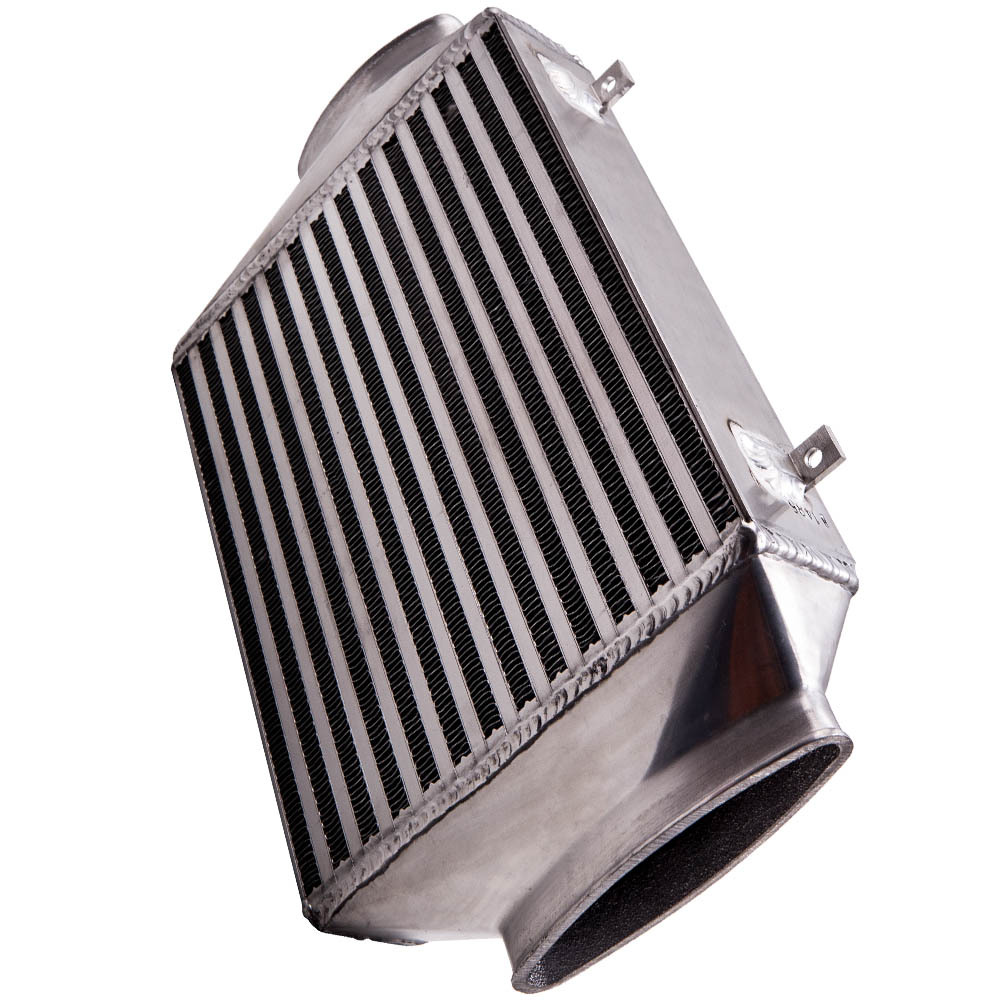

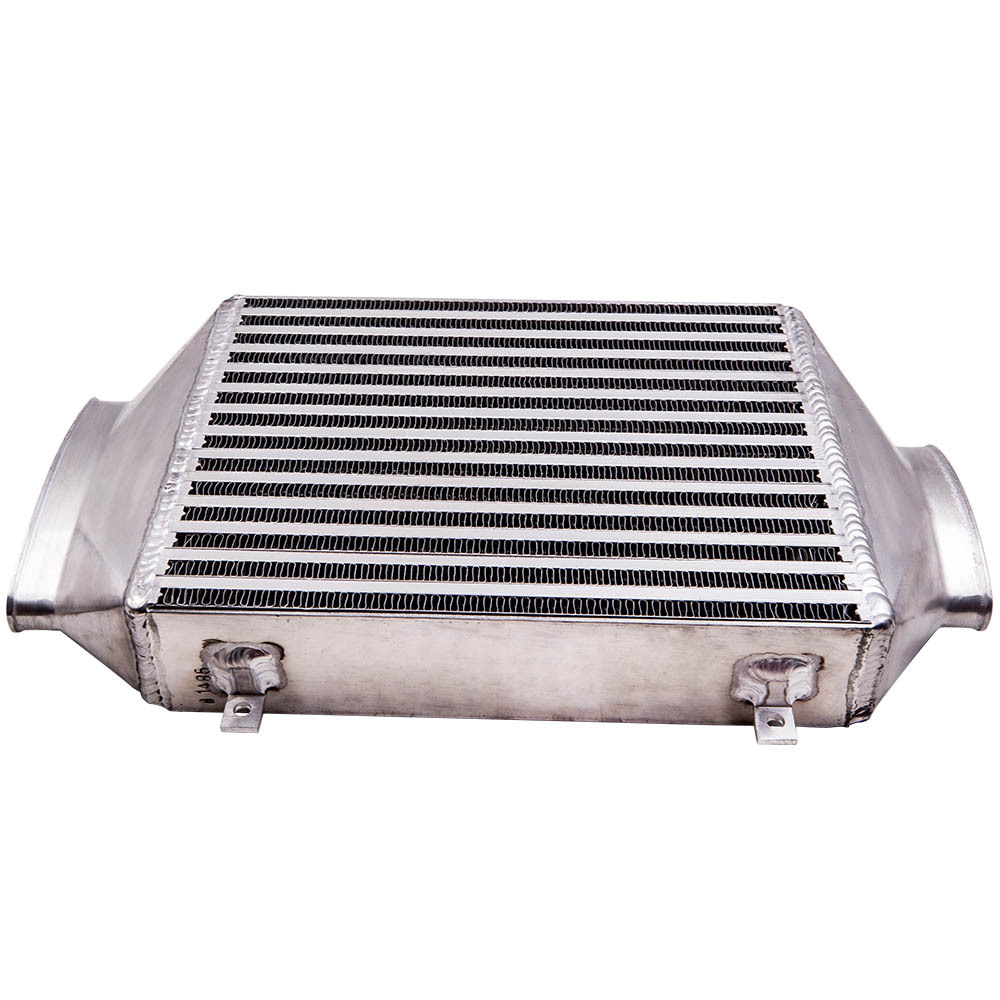

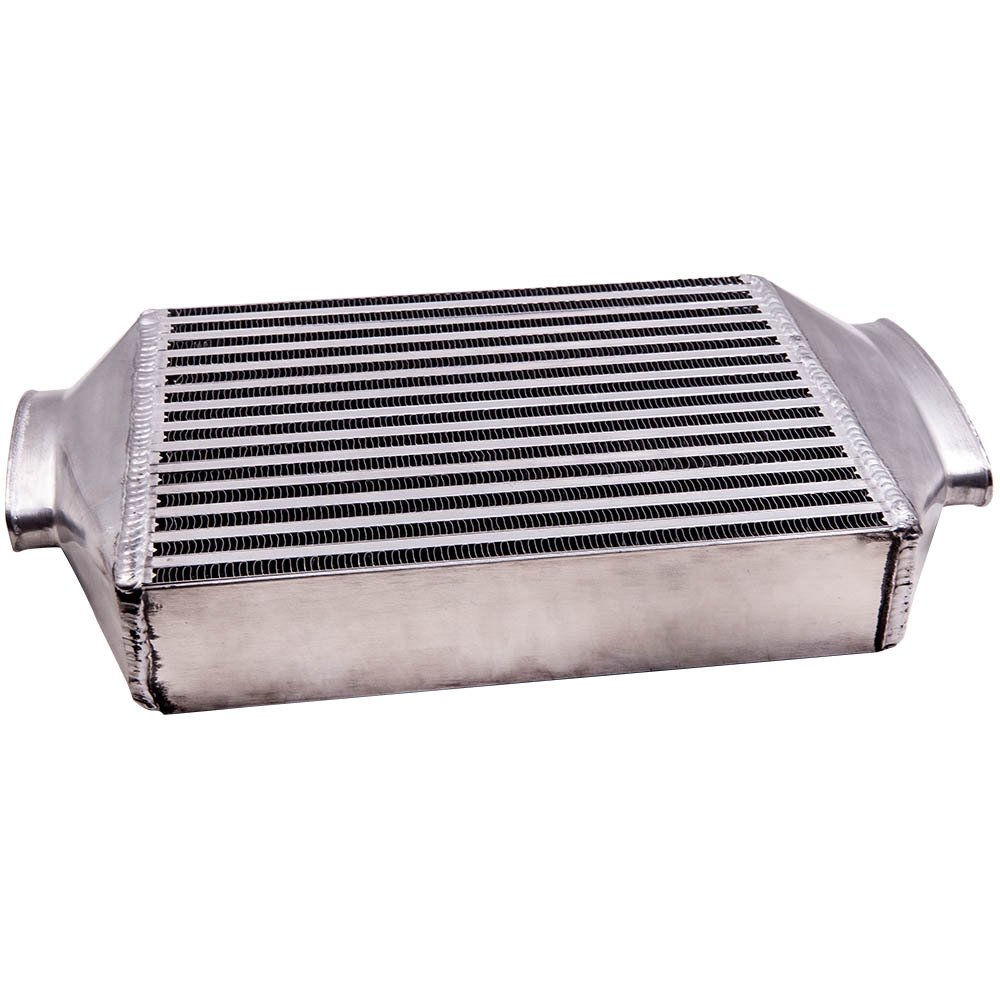

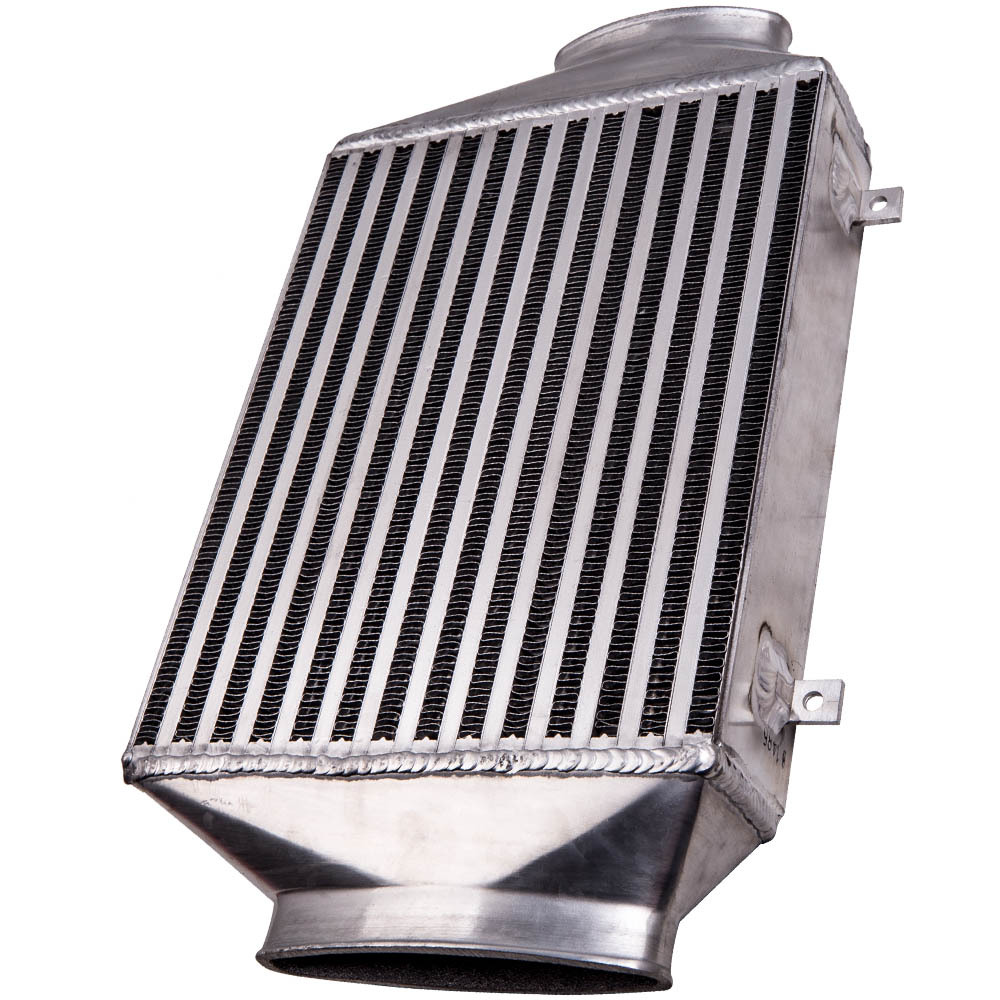

Aluminum Turbo Front Mount Intercooler compatible for Bmw Mini s r53 r50 r52 2002-2006

Application

Compatible for MINI Mini R50, R53 Cooper S
compatible for MINI Mini Cabriolet R52 Cooper S
compatible for MINI Mini Cabriolet R52 compatible for John Cooper Works

Specification

Your advantages:
Optimum quality with an excellent price-performance ratio
Condition: New /factory new
High-quality processed and very stable
Very high cooling properties due to very large cooling surface
Improves performance and motor durability
Item Properties
Core size: 300 mm x 232 mm x 62 mm
Total size: 423 mm x 256 mm x 65 mm
Inlet / outlet: 48 mm / 48 mm
Maximum power: 200-300 hp +
Test details:
Standard charge air cooler - peak power 204.9 hp and 161.1 Ib / ft
Guide 1 temperature into the charge air cooler from the compatible for charger 150 degrees and from the charge air cooler into the motor 123 degrees
Run 2 temperature from the compatible for charger 152 degrees into the charge air cooler and from the charge air cooler into the engine 130 degrees
Let 3 temperature run into the charge air cooler from the compatible for charger 155 degrees and from the charge air cooler into the motor 135 degrees
Racing Intercooler 62 mm thick core - peak power 233.3.0 hp & 190.5 Ib / ft
Let 1 temperature run into the charge air cooler from the compatible for charger 130 degrees and from the charge air cooler into the motor 44 degrees
Let 2 temperature run into the charge air cooler from the compatible for charger 137 degrees and from the charge air cooler into the motor 47 degrees
Run 3-temperature from the compatible for charger 149 degrees into the charge air cooler and from the charge air cooler into the motor 49 degrees
