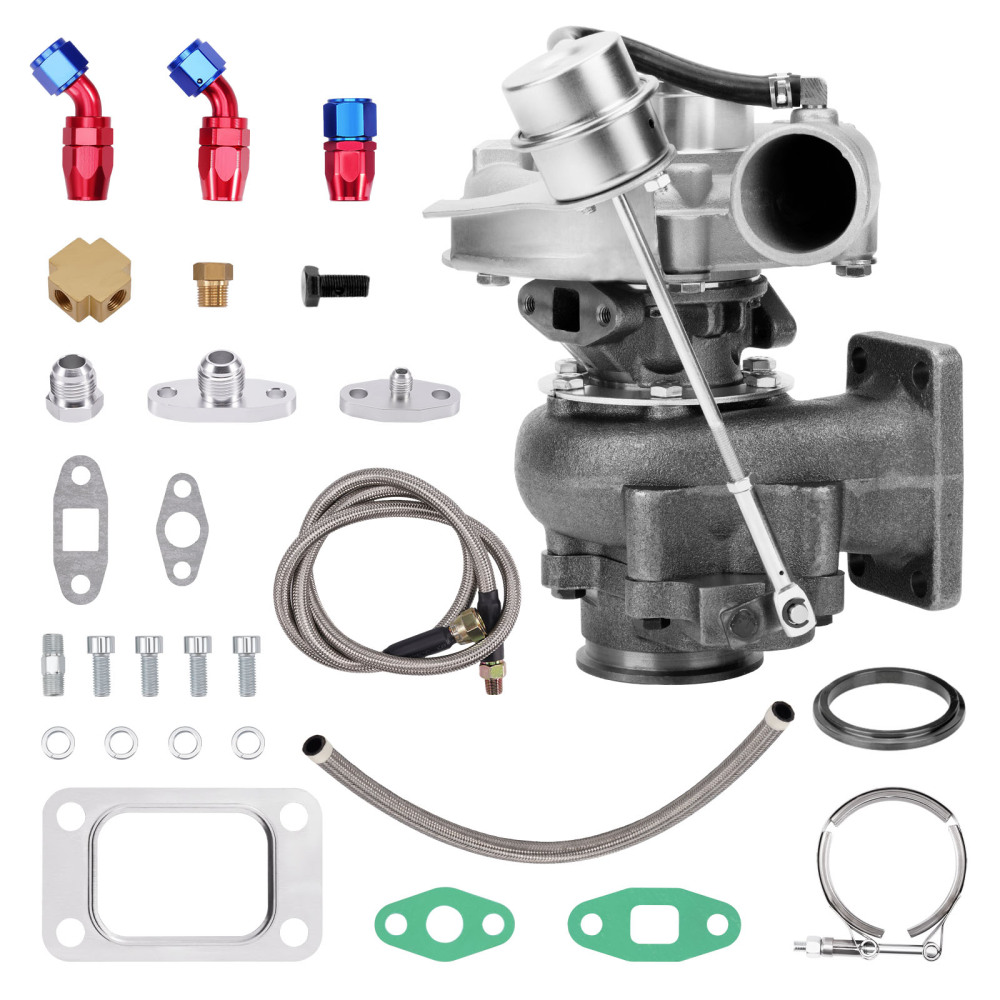

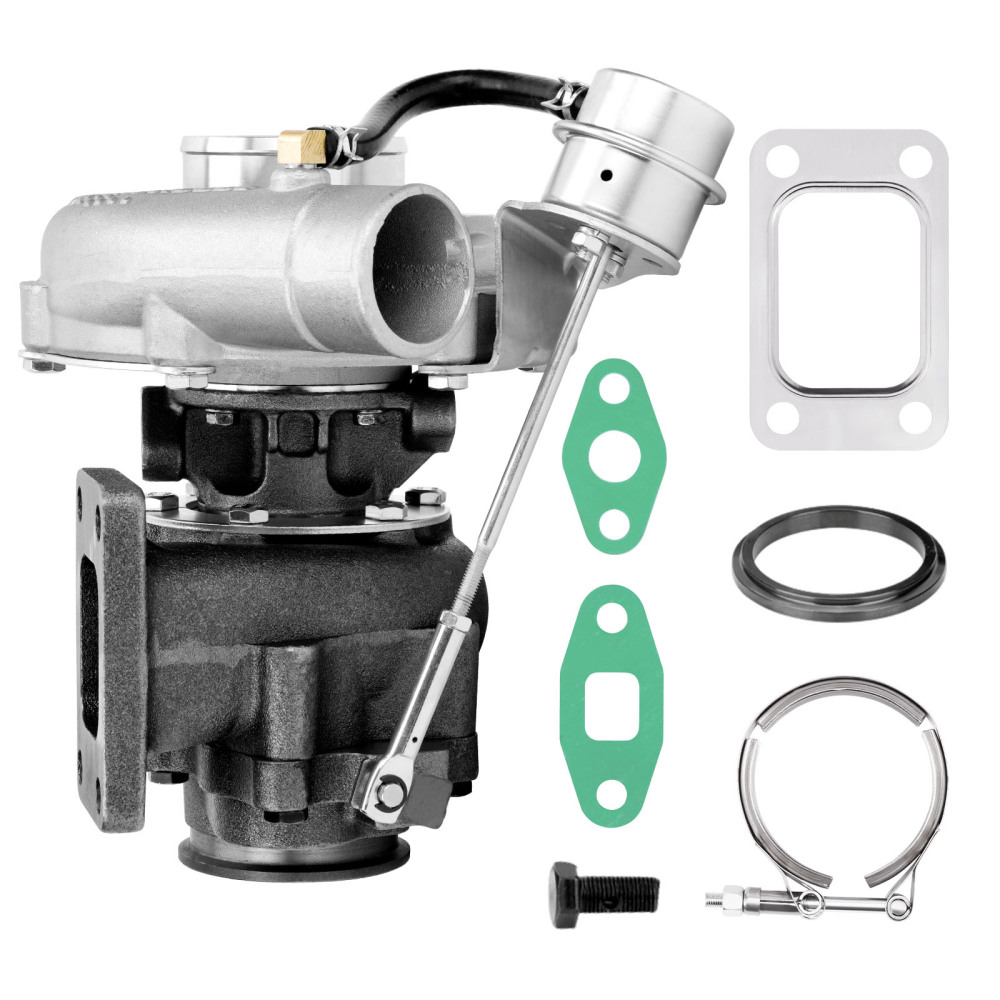

T3 T04E V-band Turbo Turbocharger 0.63 AR Oil Drain Return FEED Line Kit

Application

Perfect for all 4 or 6 CYL, 2.0L-3.5L engines

Horse Power: Capable of Boosting Horse Power up to 420HP





Specification


Exhaust Inlet Flange: T3 4 bolt Flange
Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")


Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm (length) /85.8mm (width)

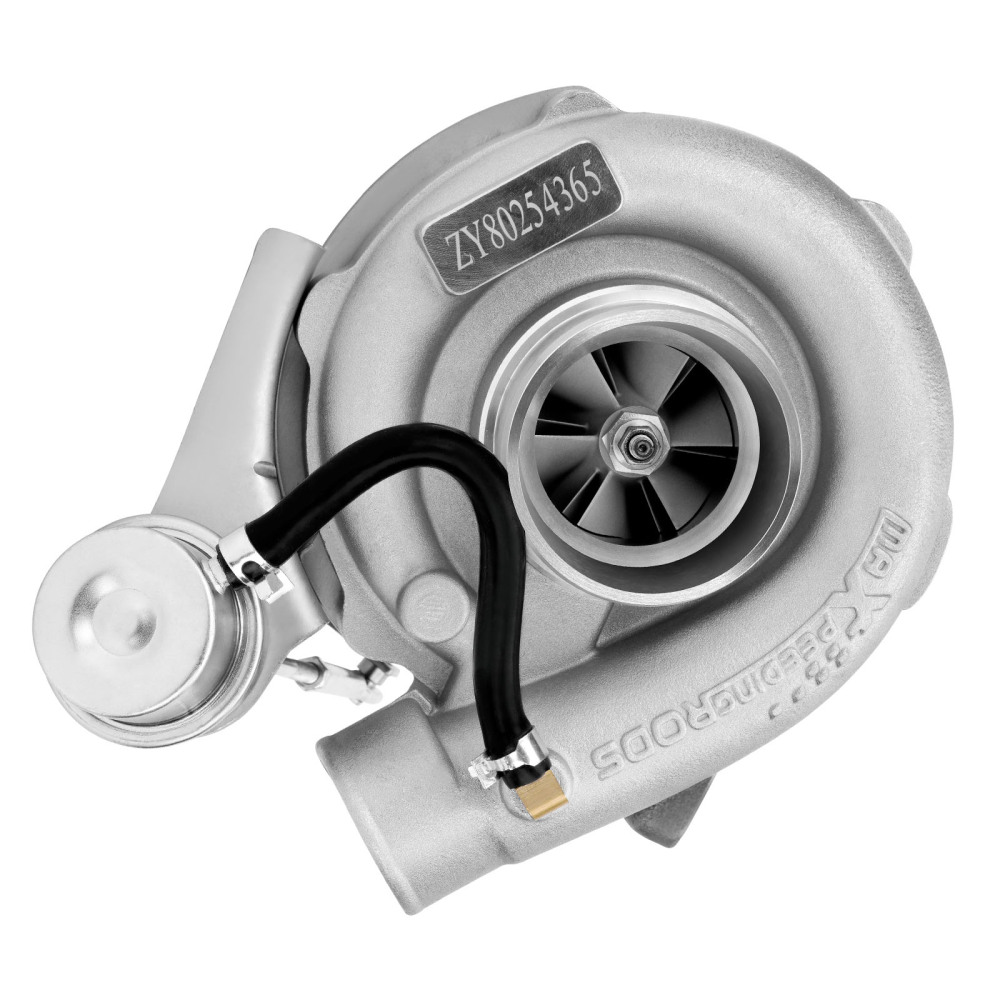

Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

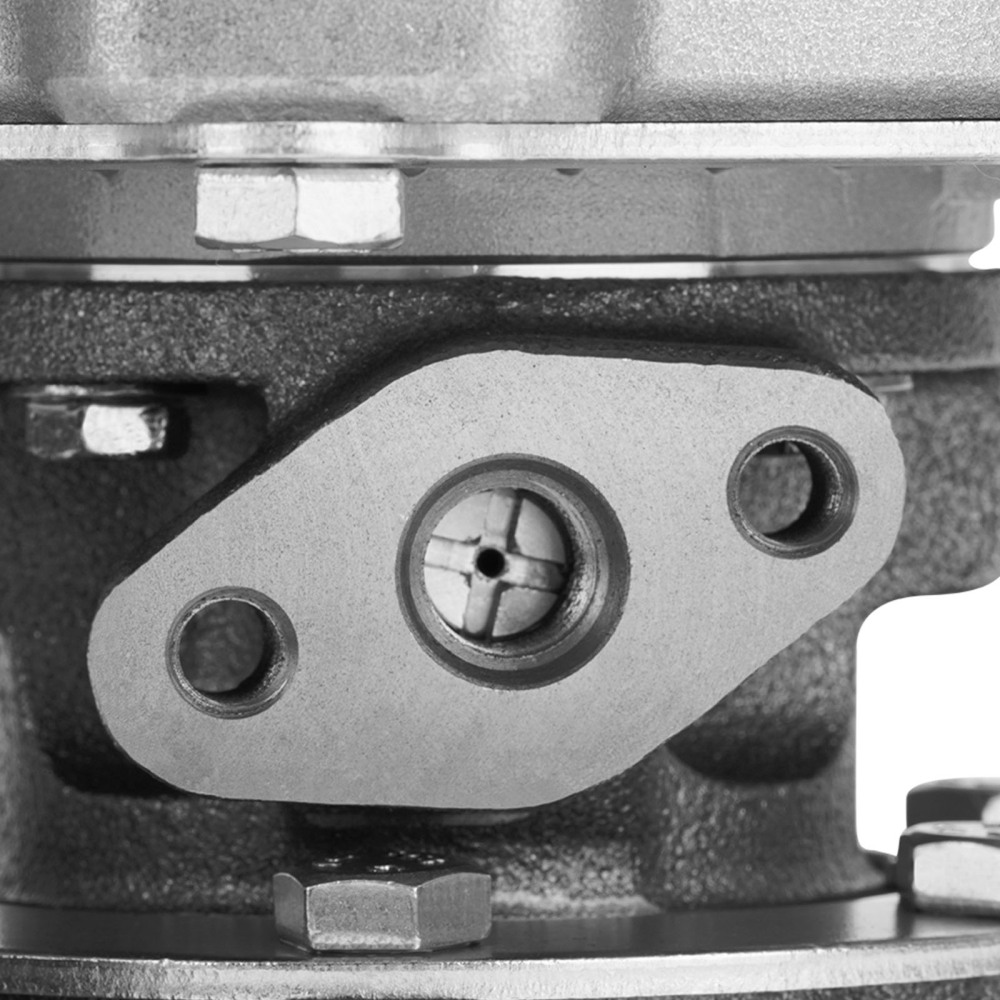

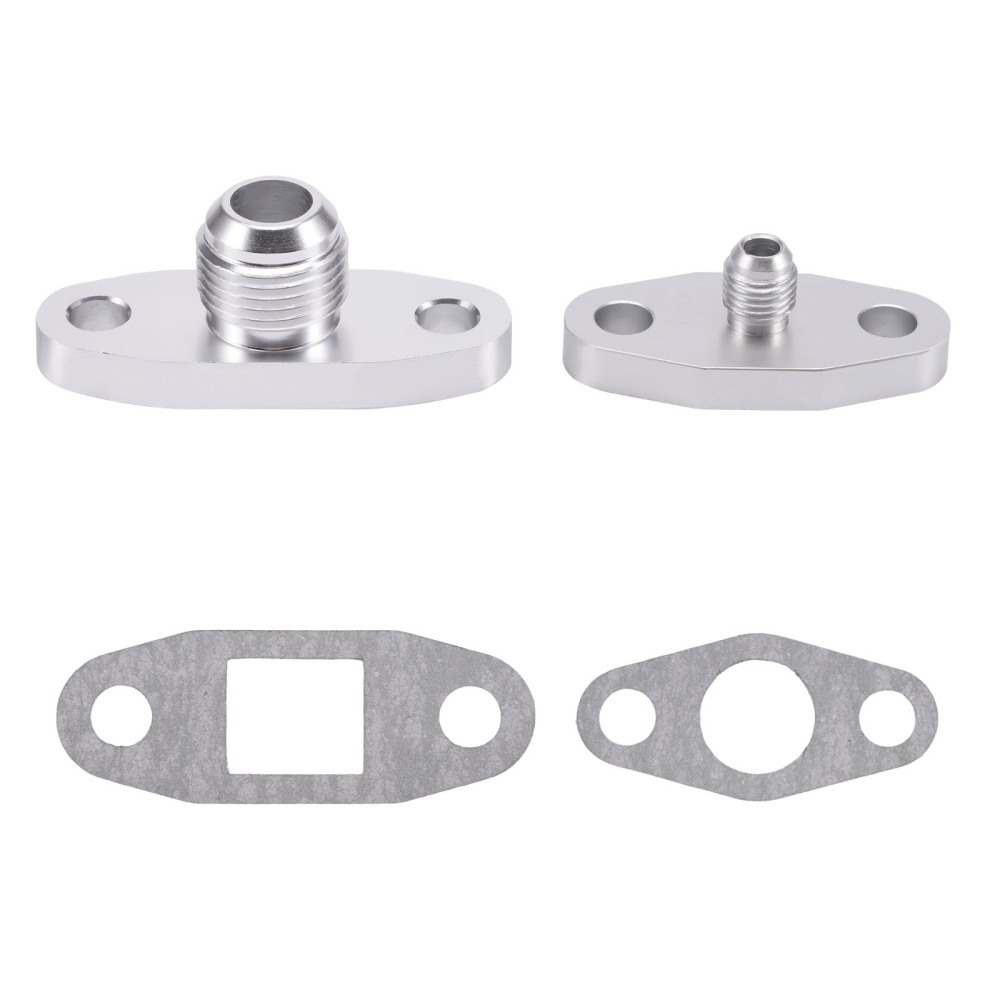

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: w/  Wastegate
Thrust Bearings: 270 Degrees
Hosepower: Up to 420 HP

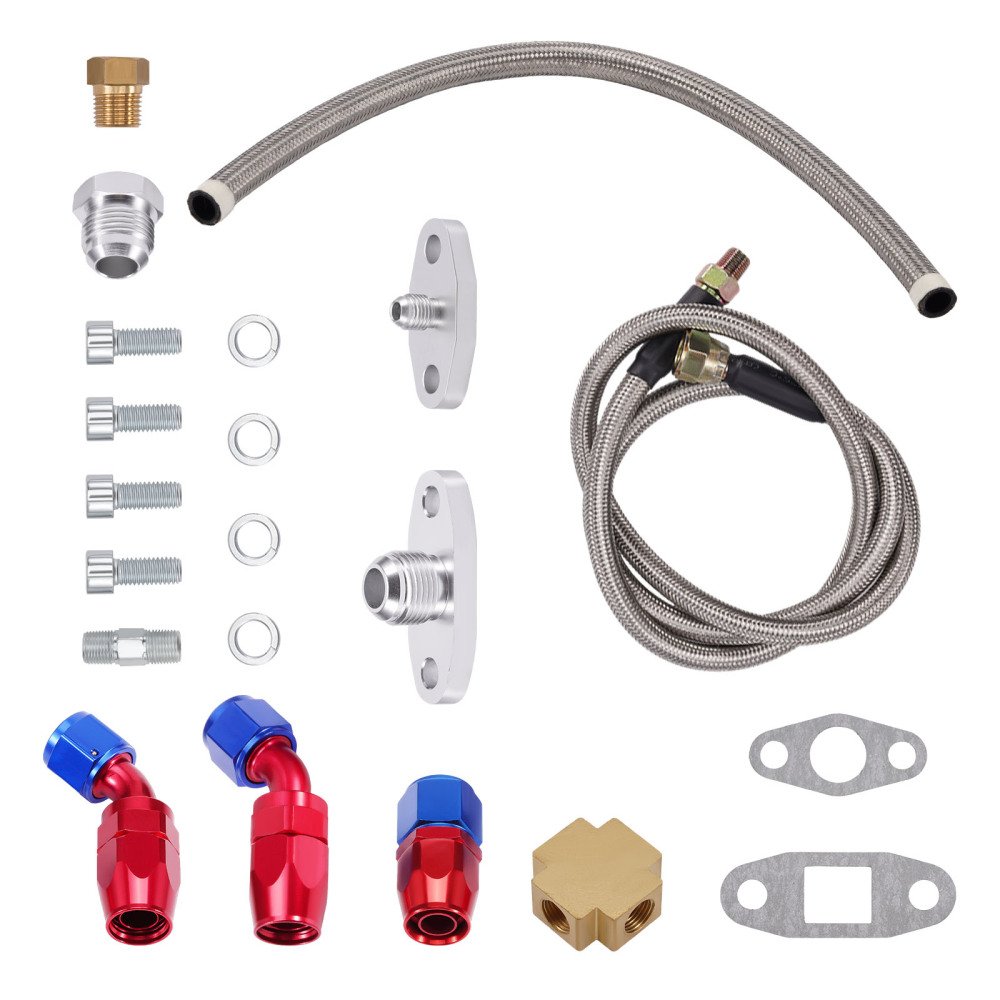

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
​* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm





Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us

* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))

* For any other question, please contact us by e-mail
