T3/T4 T04E Turbo Universal T3 Flange 5 bolts exhaust outlet flange turbocharger

Overview

Turbochargers are turbo-driven devices that add extra air to the combustion chamber of the engine to produce more power.Turbochargers are intended to increase the power of internal combustion engines.By looking for the make and model of your car, you can buy a reasonably priced turbocharger here.
The turbocharger is one of the most common and ideal upgrades you can make to your car.This is a technology used in cars with larger engines. The device is driven by a turbine, which sends more air into the combustion chamber, causing the engine to burn more fuel per second, and more fuel means more power.
This turbocharger is guaranteed to fit for Universal fitment for 2.5L and up engine up to 150-400HP.This is a brand new direct-fit turbocharger replacement and is the perfect OEM & aftermarket turbocharger.We always provide turbocharger for sale with budget price and attentive services.Replacing your car's with Maxpeedingrods turbocharger to enhance overall engine performance.

Application

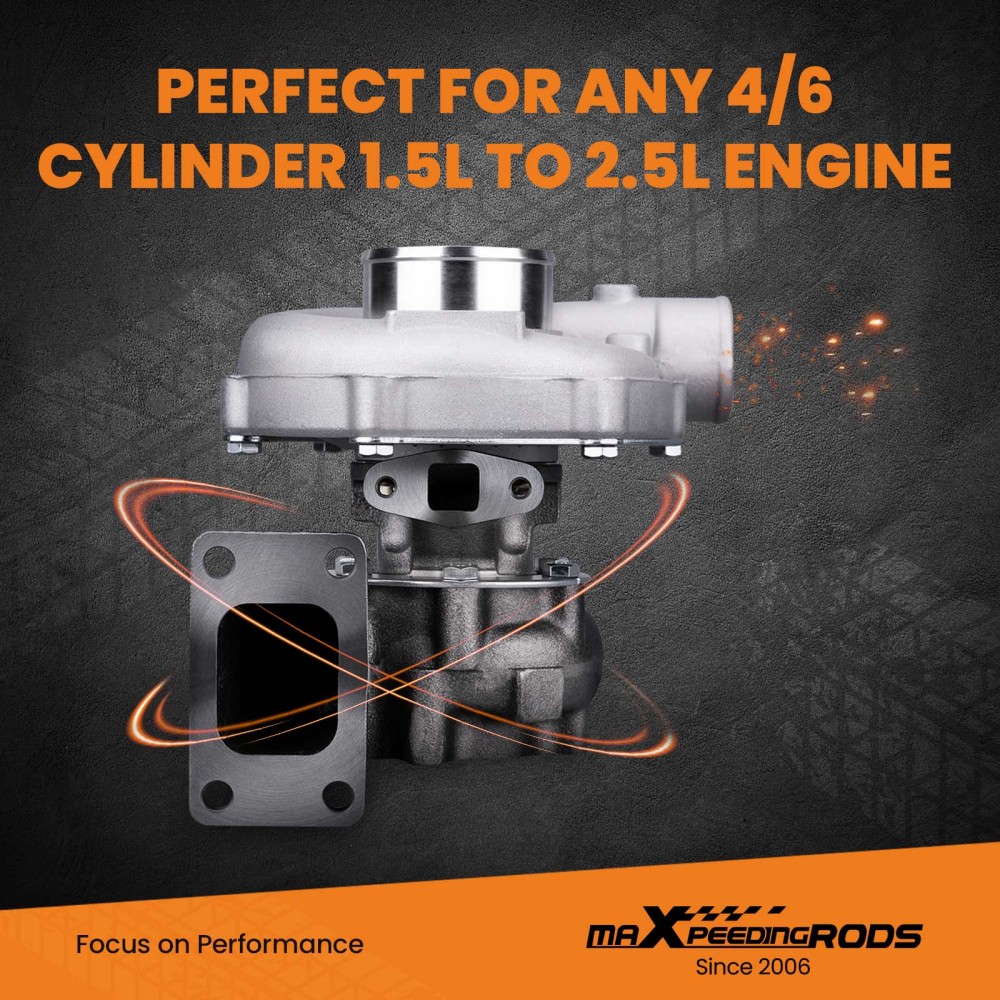

Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Notice:Please confirm that your car's displacement is between 1.5-2.5L .Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Specification

Turbine:

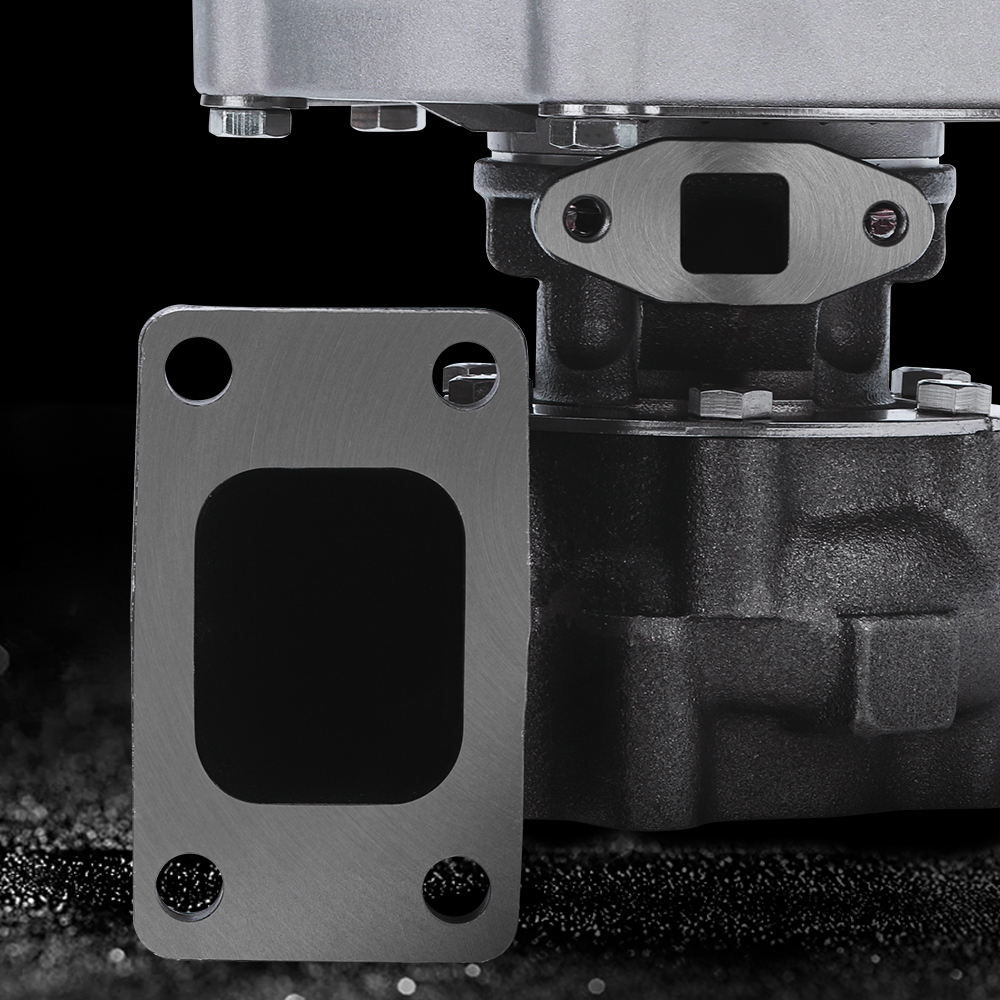

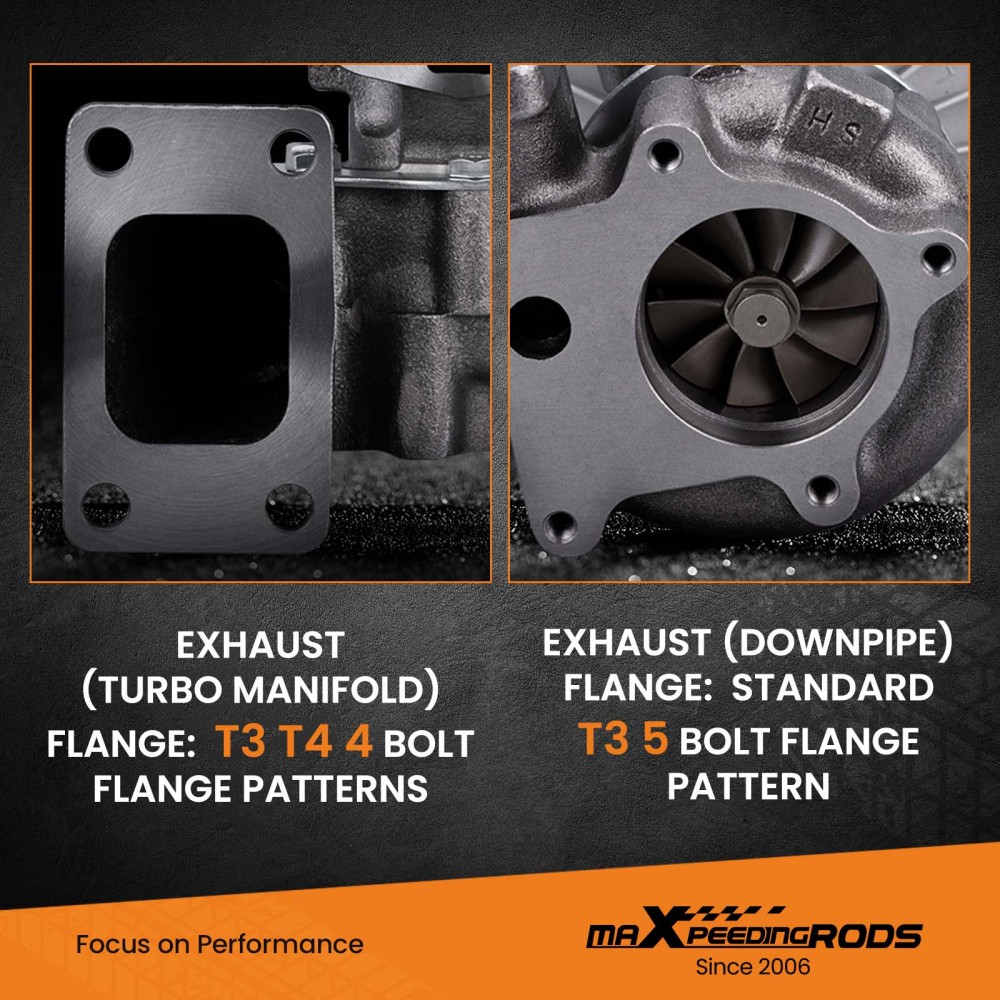

Turbine Intake Flange: T3 T4 4 bolt Flange Patterns

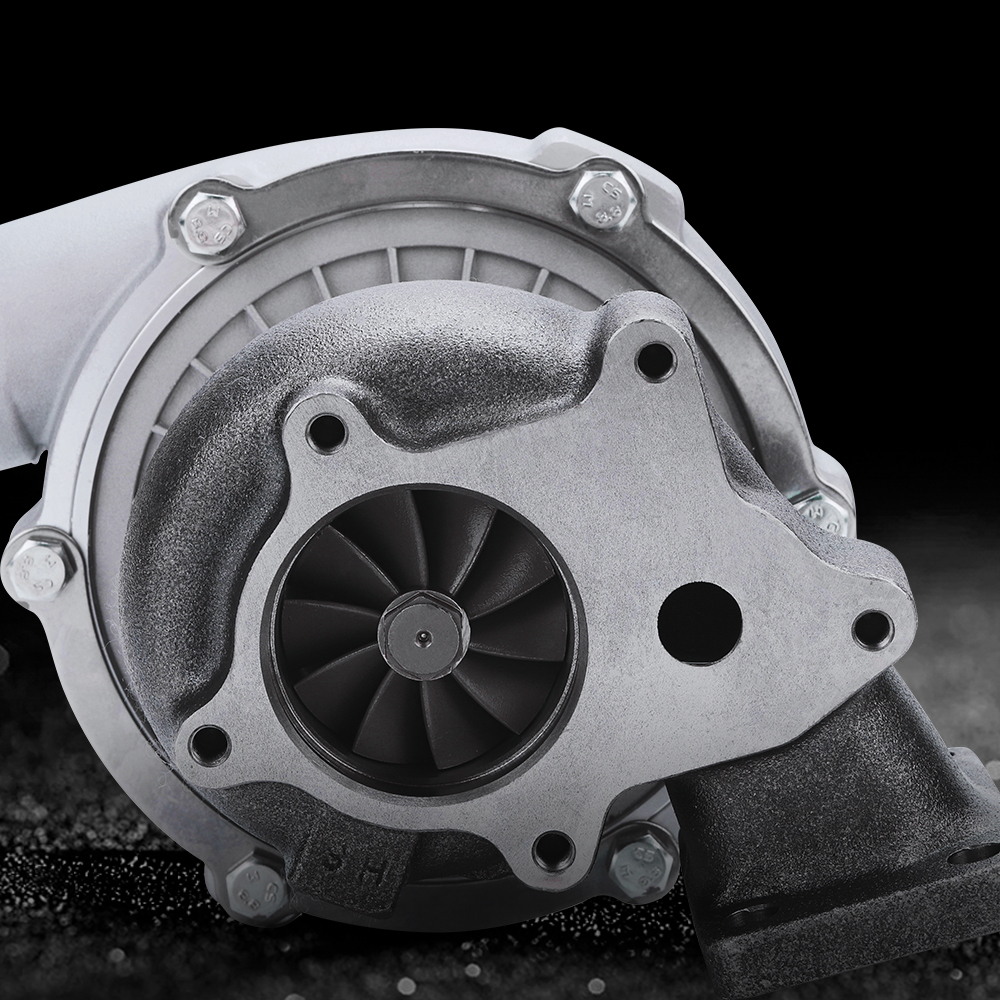

Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet：44.5mm/81mm
Compressor:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet：45mm(inside diameter)、53mm(outer diameter)
Compressor inlet：68 mm(inside diameter)、72mm(outer diameter)

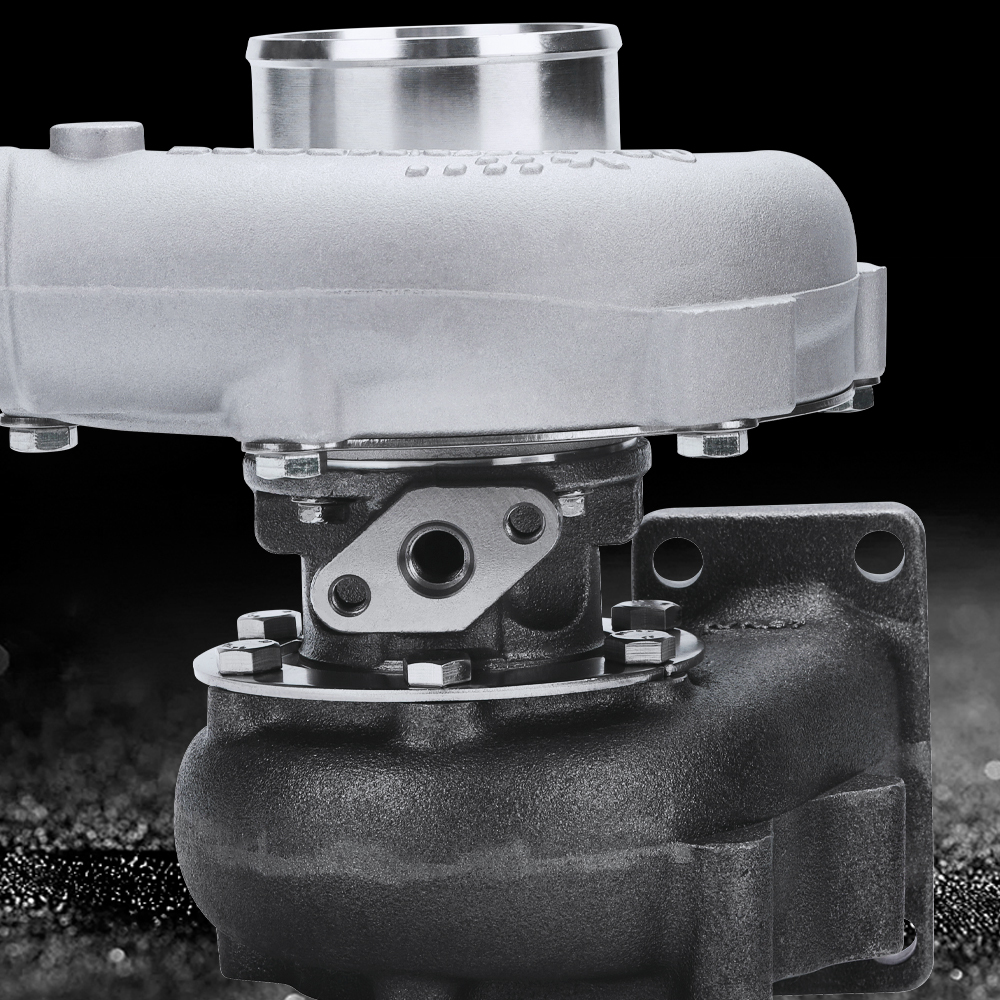

Oil Inlet: M12*1.25
Oil Outlet:2*M8*1.25

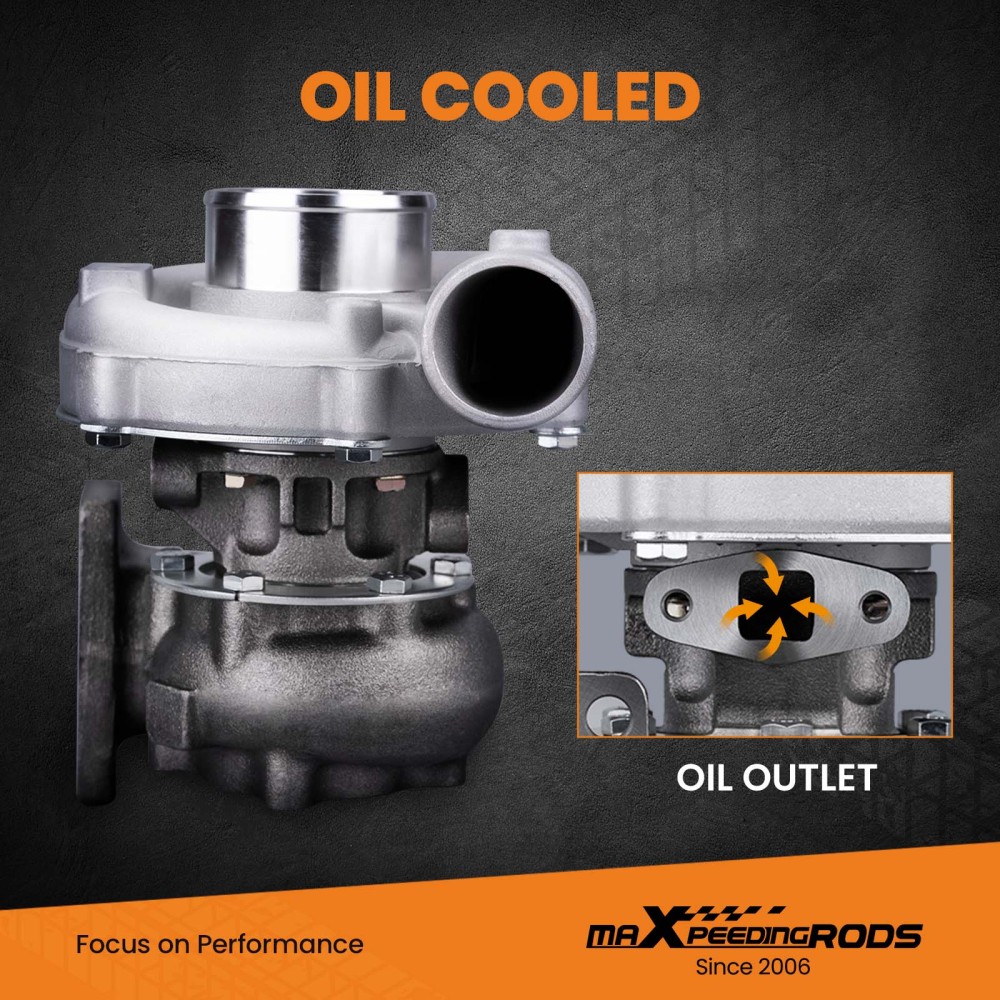

Cooling Type: Oil Cooling

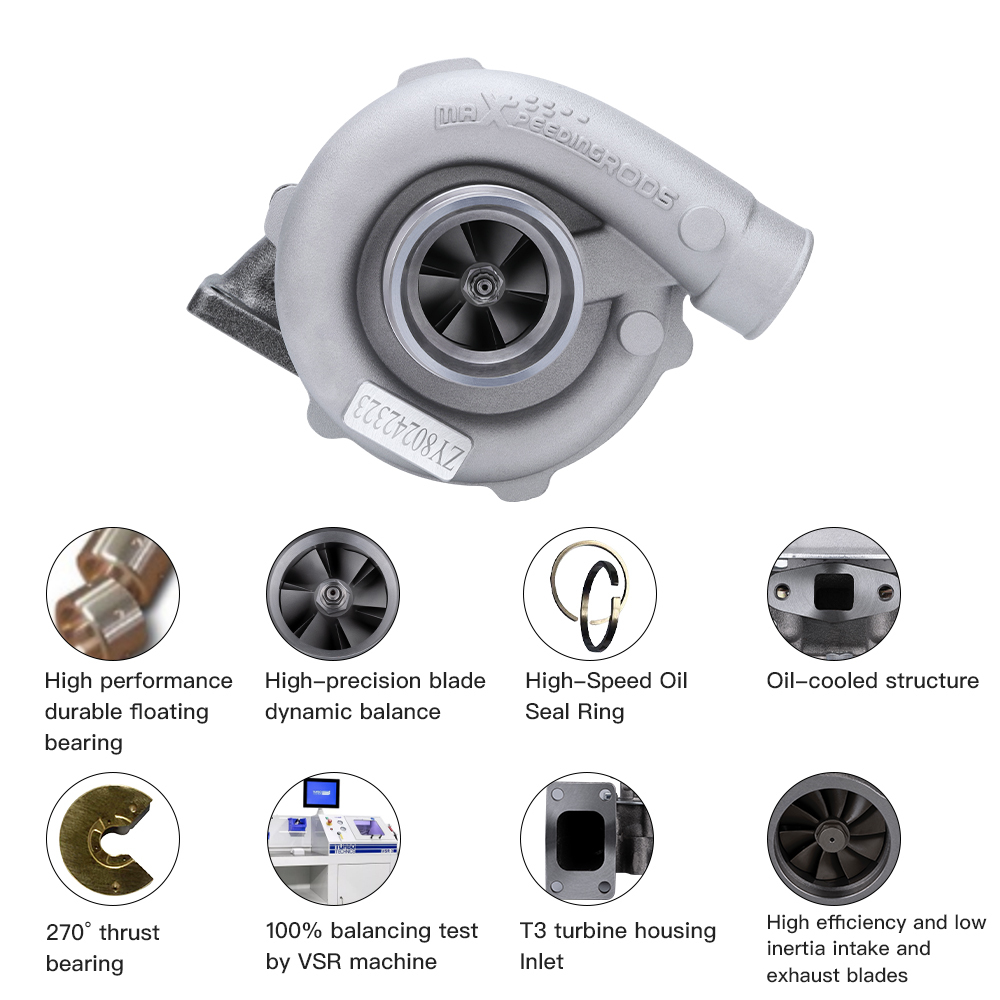

Bearing Type: Journal Bearing/Floating Bearing
Thrust bearing: 270 degrees

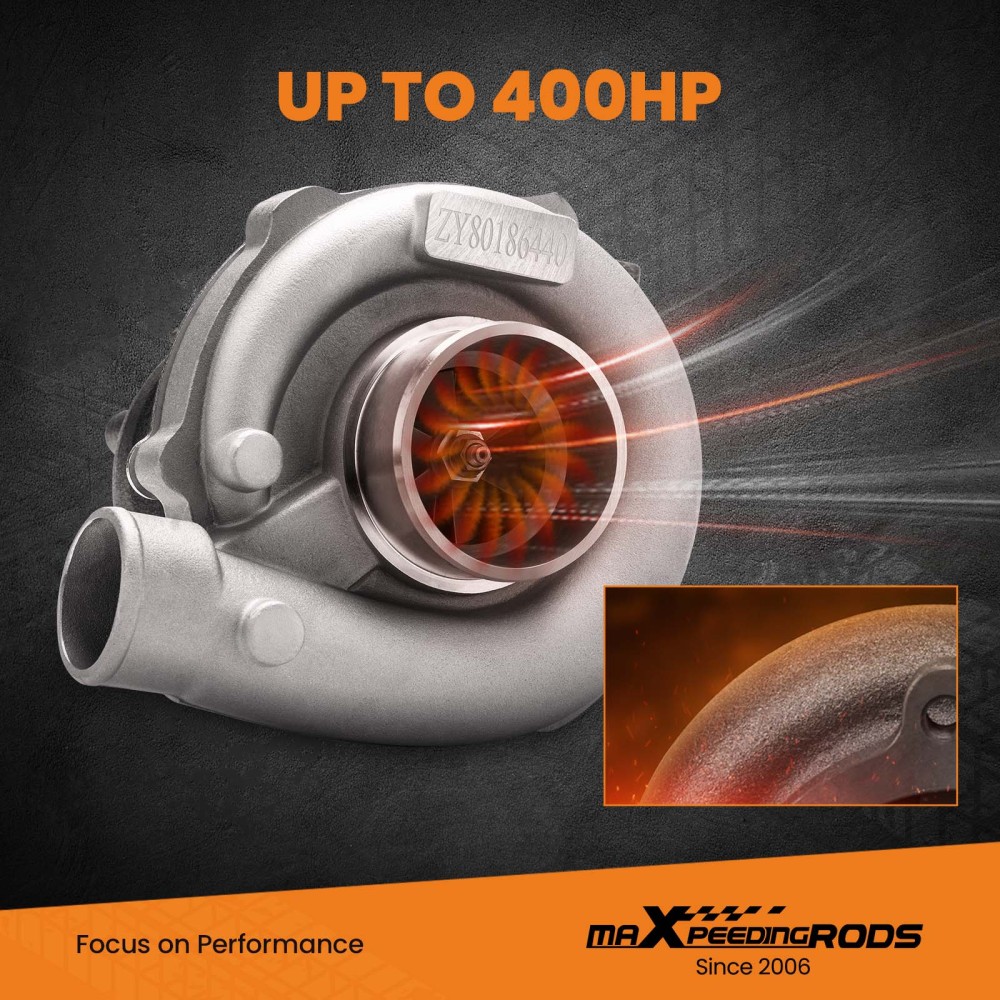

Horse Power: Up to 400 hp
Wastegate：Without Wastegate
Actuator Type: W/O Actuator
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size:27x 25x 24 cm
Package Weight: 7250g

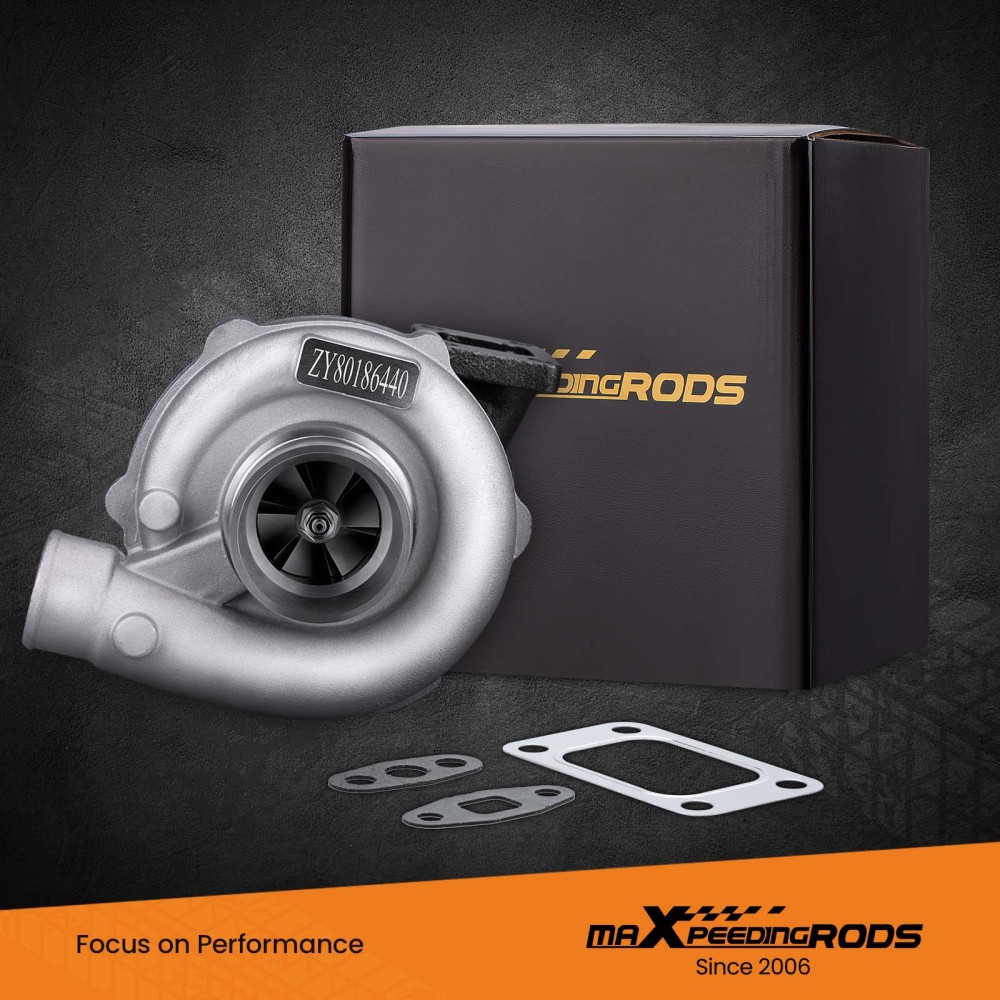

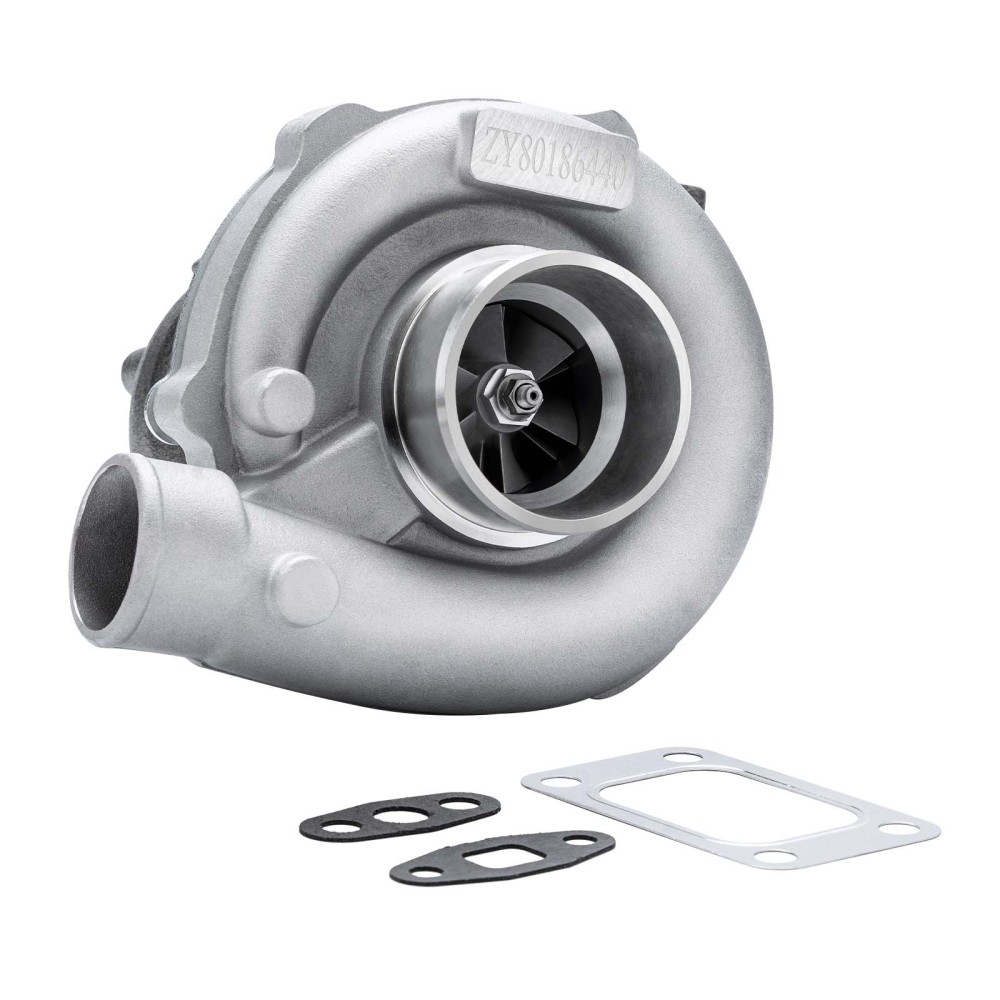

Package included:
1xTurbocharger
1x Flange Gasket
2x Oil Port Gaskets
1x Manual
1x Brochure
1x Sticker

Feature

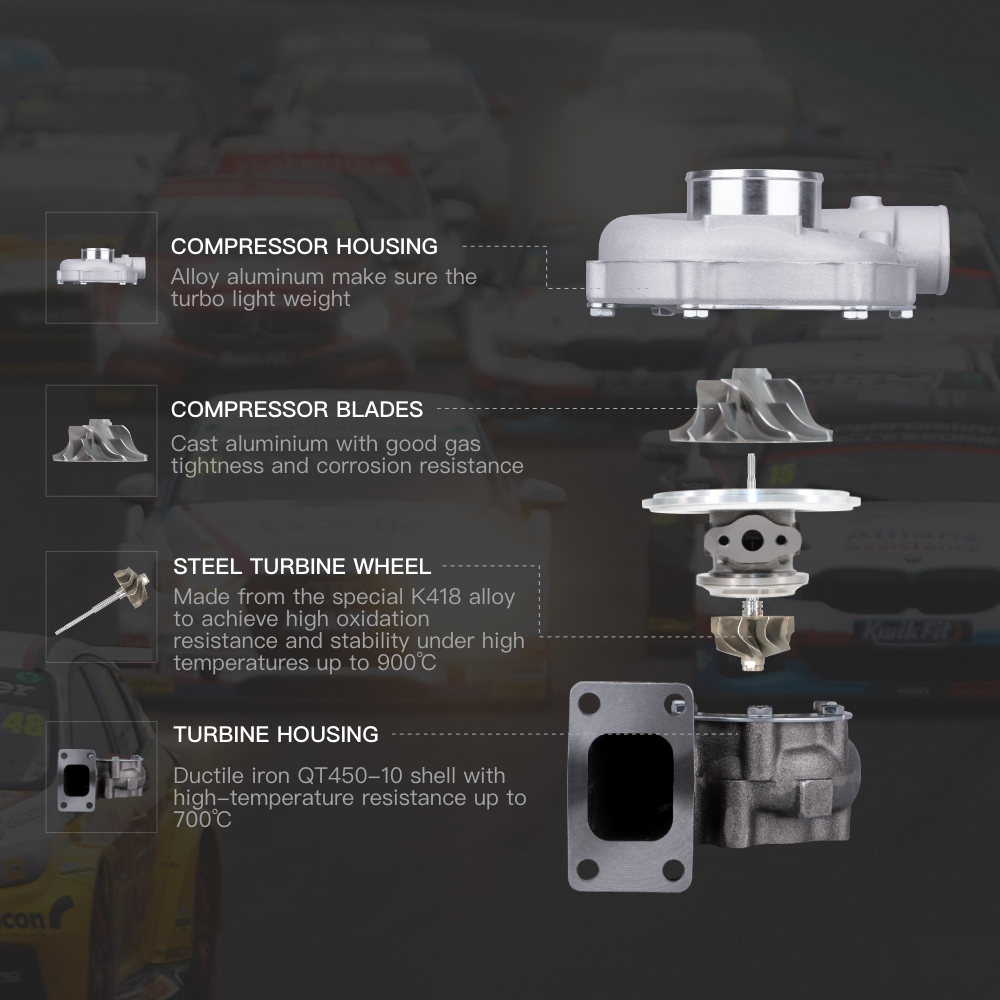

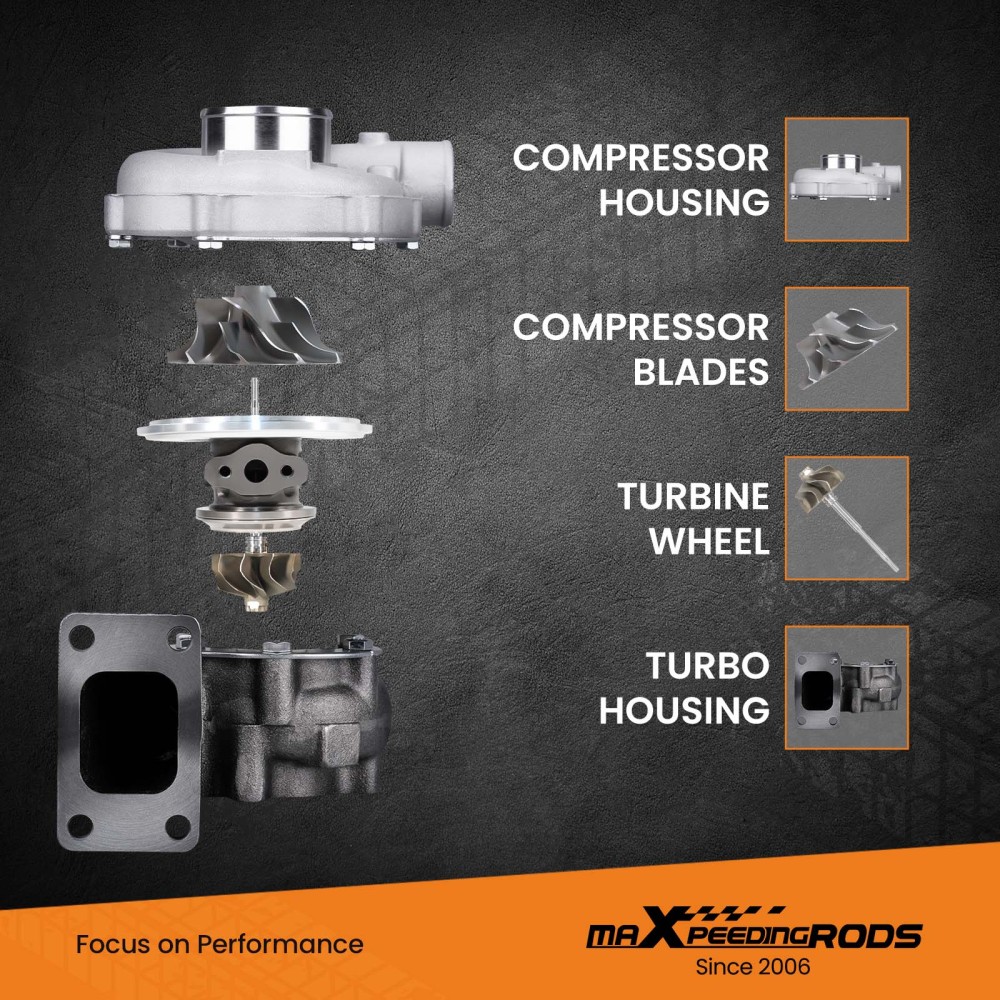

*Product Material
1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
*Product Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:

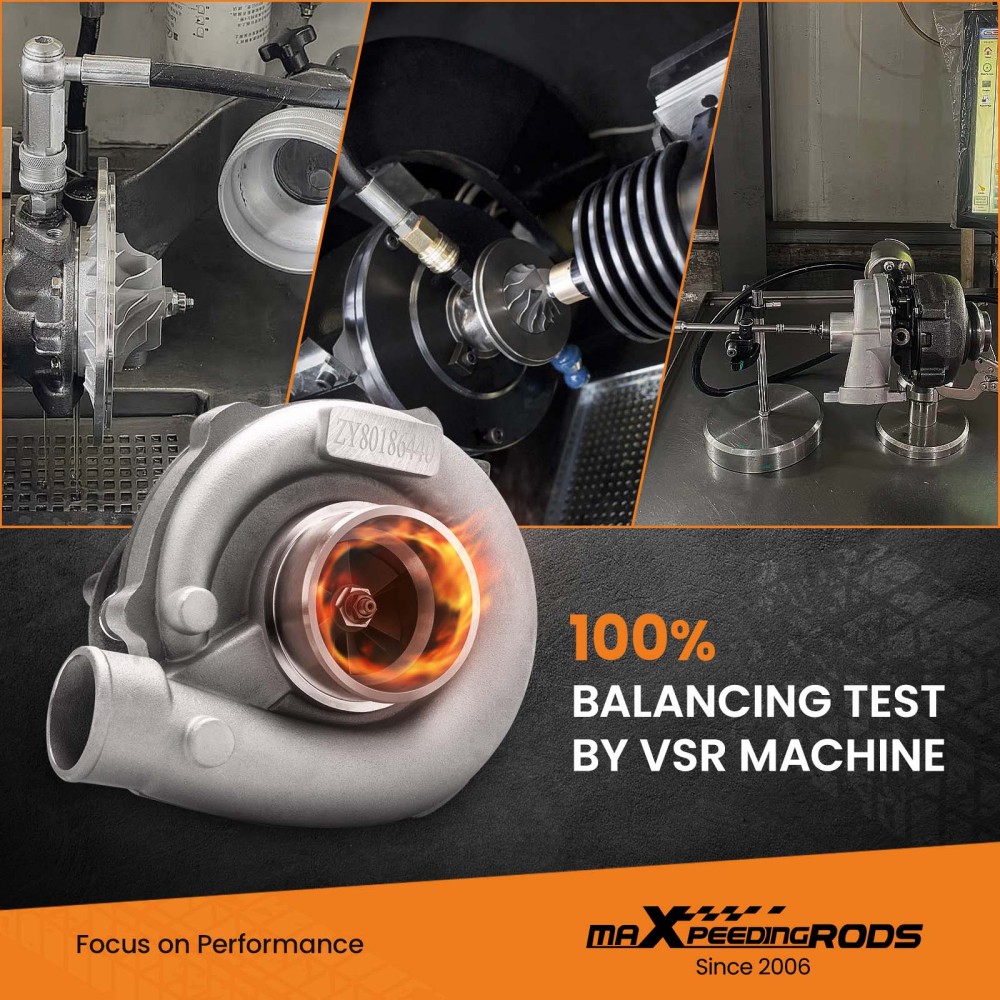

1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

*100% Brand New
* Professional Installation is Highly Recommended.
*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
*Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
