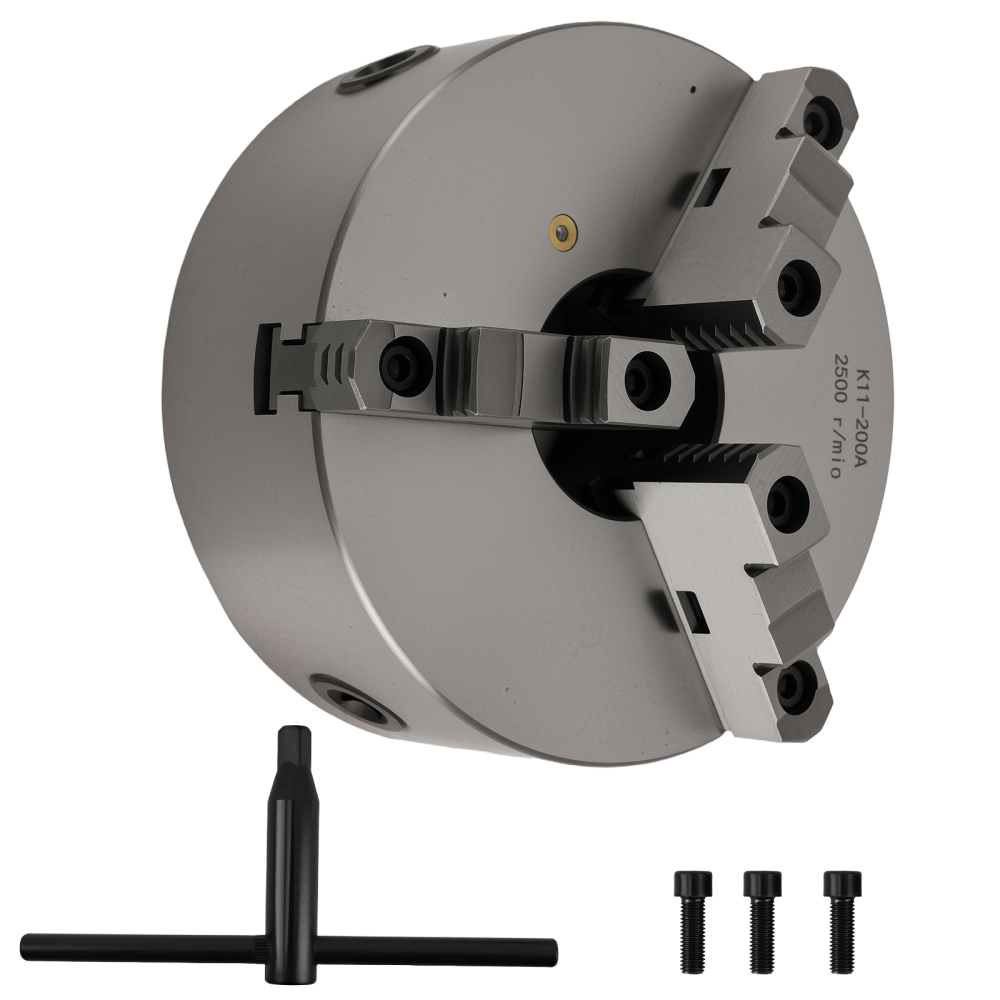

8 3 Jaw Self Centering Lathe Chuck Milling K11-200A Hardened Steel

lncl. 20% VAT
Item Number 3002034367
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Application

for General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc..

Specification

- Material:Hardened Steel
- Model: K11-200A
- Jaw: 3 Jaw
- High precision: ≤0.05mm
- Application: for CNC Drilling Milling Machine
- Color: Silver
- Lathe Chuck:
- Size: 200 mm (7.9")
- Outside Diameter: 200 mm (7.9")
- Bolt Circle Diameter: 180 mm (7.08")
- Center Thru Hole Diameter: 65 mm (2.559")
- Chuck Body Thickness: 75 mm (2.95")
- Internal Jaw Clamping Range (A-A1): 4-85 mm (0.16"-3.35")
- Internal Jaw Jamming Range (B-B1): 65-200 mm (2.56"-7.87")
- External Jaw Clamping Range (C-C1): 65-200 mm (2.56"-7.87")
- Mounting Thread: 3-M10
- Accuracy: 0.002"
- Package Includes:
1 x Three Jaw Self Centering Chuck
3 x Bolts Circle
1 x Handle

Note

Please feel free to contact us for whatever we can help.


Warranty: one year warranty for any manufacturing defect
