compatible For Mercedes C-Class Front Upper Lower Suspension Wishbone Control Arms Link Kit suspension arms

Application

Compatible for Mercedes-Benz Models w/o Sport Suspension
(NOTE: 10mm Sway Bar Link)
Compatible for MERCEDES-BENZ C-CLASS W203 [2000-2007] SALOON
compatible for MERCEDES-BENZ C-CLASS CL203 [2001-2008] COUPE
compatible for MERCEDES-BENZ C-CLASS T-MODEL S203 [2001-2007] ESTATE
compatible for MERCEDES-BENZ CLC-CLASS CL203 [2008-2011] COUPE
compatible for MERCEDES-BENZ CLK A209 [2003-2010] CONVERTIBLE
compatible for MERCEDES-BENZ CLK C209 [2002-2009] COUPE

OE/Part number

OE/Part number:
Sway Bar Link：
19460064101,2033200489，A2033200489，A2033202889，9460064AN
CONTROL ARM OEM:
upper（left):2033300111,2033301611,2033303511,2033303911,2043303311,2043304311,A2033300111,A2033303911,A2043304311,CMS101071,CMS10130,GS10130,MS101071,MS10130,RK620086,RK621955
upper（right）：2033300211，2033301711，2033303611，2033304011，2043303411，2043304411，A2033300211，A2033304011，A2043304411，2043308711，CMS101071，CMS10130，GS10130，MS101071，MS10130，RK620086，RK621955，9300660AN
left lower（left）：2033303311,2043301911,A2033303311,A2043301911,CK80533,CMK80533,GK80533,K80533,MK80533,RK80533,9300051AN
left lower（right）：2033302011，2033303411，2043302011，A2033303411，A2043302011，CK80534，CMK80534，GK80534，K80534，MK80534，RK80534，9300052AN,51250494R
Other oe number： 512-50494R 512-50495L 520-953, 520-954（upper）
512-50492R 512-50493L , 520-955 520-956（lower）

Specification

Installation Location：Front ,Upper,Lower,Left,Right
Material: Steel,Aluminium,Iron
Greasable or Sealed: Sealed
Surface Finish：Rust protected
Item Weight : 8.96KG
Package Dimension : 42*29*14cm
Package Includes:
2*Front upper control arms(left &right)
2*Front lower control arms(left &right)

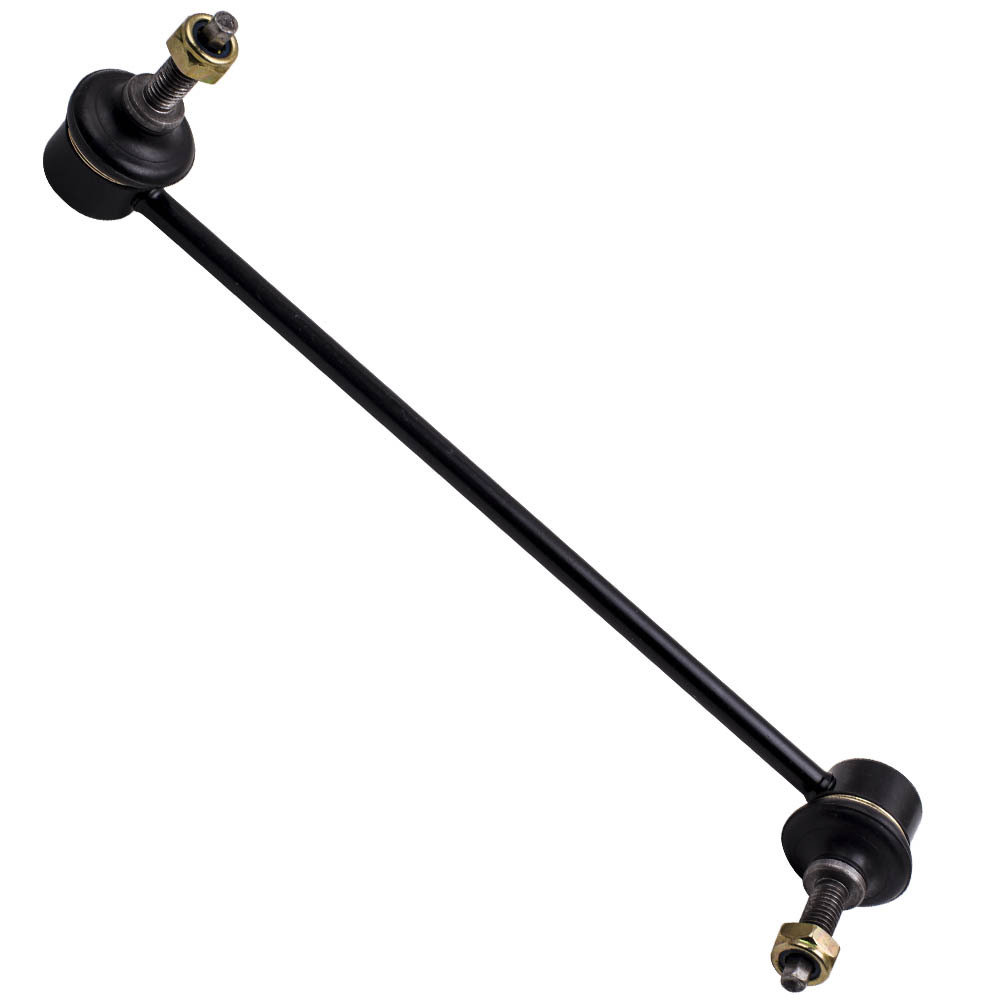

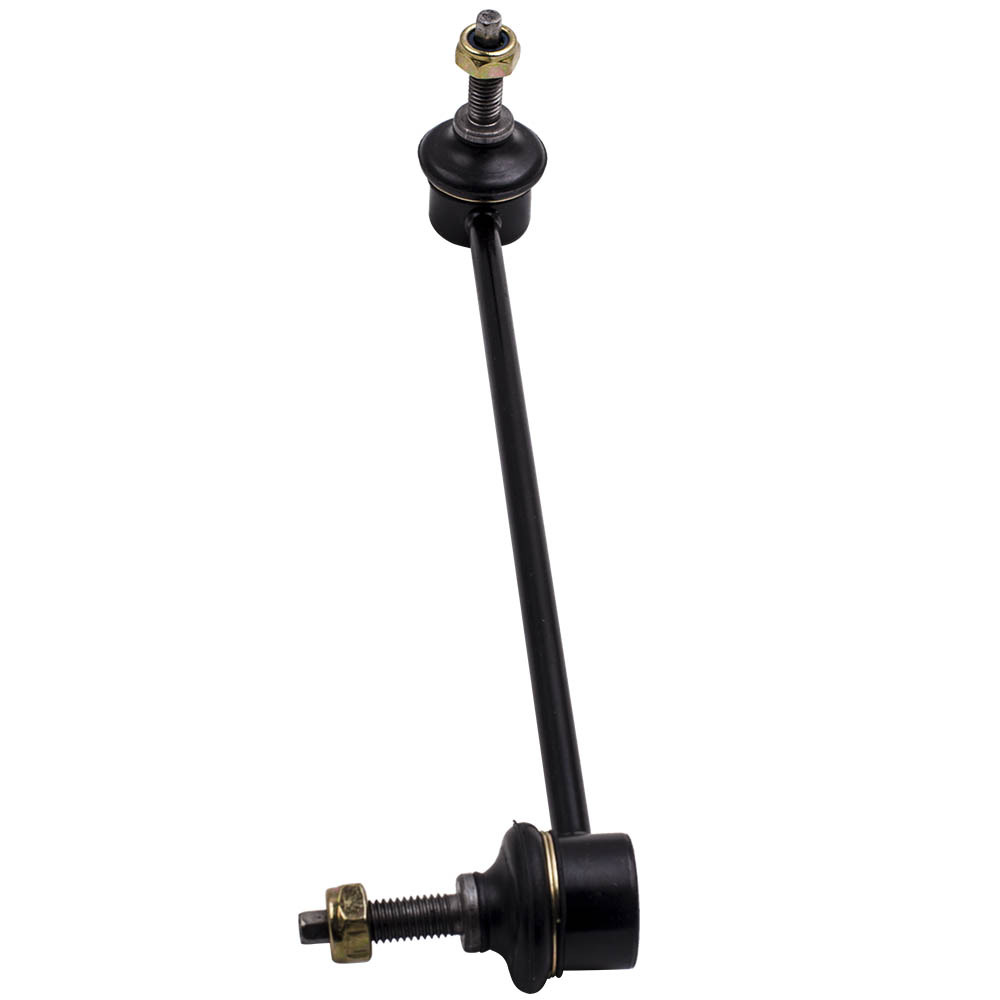

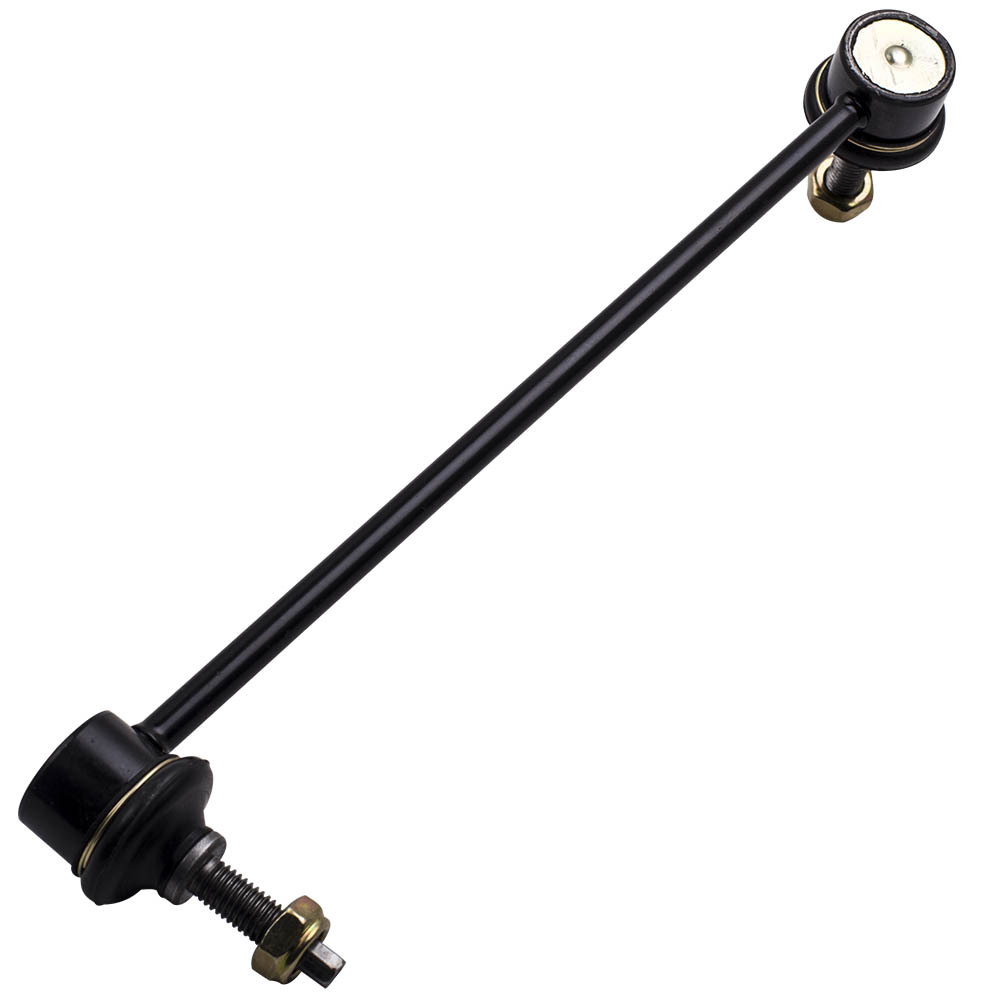

2*Anti roll bar drop links

Feature

*Sealed design where applicable, for easy maintenance and longevity.
*Precision-machined to stringent tolerances.
*Components and hardware have been specially treated with a black oxide coating and Anodizing to increase strength and corrosion resistance.
*Full ball metal stud provides 360° of smooth rotational movement for more responsive steering.

Note

*Please confirm your original part number or oem numbr can match up with one of the part numbers above.
*Please double confirm before ordering.
* No instruction included; Professional installation and alignment suggested.
